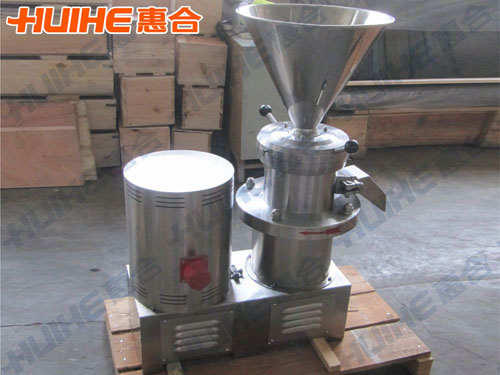

Sanitary Stainless Steel Colloid Mill

The basic principles of sanitary stainless steel colloid mill is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made.

Classification of Colloid Mill

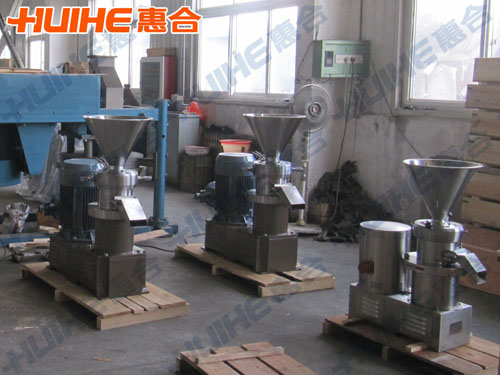

live demonstration of colloid mill

1. According to Structure: there are Vertical Colloid Mill and Split Colloid Mill

2. According to Angle of Appearance: there are Ordinary Colloid Mill and Sanitary Colloid Mill

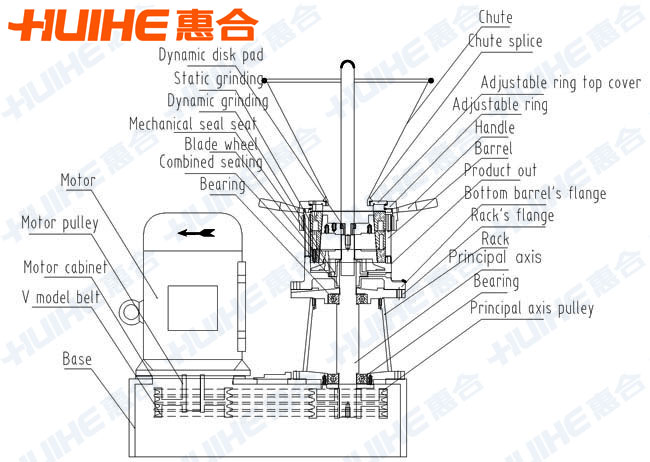

Structure of Sanitary Stainless Steel Colloid Mill

Usage of Sanitary Stainless Steel Colloid Mill

The split colloid mill is mainly used in the food industry, chemical industry, pharmaceutical industry, daily industry, building industry, papermaking industry, plastic industry, battery industry, etc.

Characteristics of Sanitary Stainless Steel Colloid Mill

1,Relative to the pressure-type homogenizer, colloid mill first is a kind of centrifugal equipment. It has the advantages of simple structure, convenient maintenance and is suitable for high viscosity materials and large particles materials.

2.Also, its main drawback is determined by its structures. First, as for the centrifugal movement, the flow is not constant, corresponding to viscous material, the flow vary greatly. For example, the same equipment, in dealing with viscous lacquer and thin dairy fluid, the flow speed can differ 10 times above. Second, because of the high-speed friction between the stator and material, it is easy to generate large quantity of heat, and make the material processed. Third, the surface is easy to wear, and after wearing, the refined results will be significantly reduced.

Technical parameters of Colloid Mill

Model		JML-50		JML-80	JML-100	JML-120	JMF-80	JMF-100	JMF-120	JMF-140	JMF-180
Emulsification fineness um （single cycle or multi-cycle）		5~40		3~40	2~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjustment range mm		1-0.01		1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output t/h change according to materials			0.01-0.2	0.3-1	0.5-2	0.7-3	0.3-1	0.5-2	0.7-3	1-4	2-5
Motor	Power kw		1.1	3	5.5	7.5	4	5.5	7.5	11	15
	Pressurev		380	380	380	380	380	380	380	380	380
	Stirring speed r/min		2880	2880	2880	2880	2880	2880	2880	2880	2880
Grinding diameter mm			∮50	∮80	∮100	∮120	∮80	∮100	∮120	∮140	∮180
Discharge port diameter （時(shí)）			∮15	∮25	∮32	∮40	∮25	∮32	∮40	∮40	∮65
Cooling water pipe （時(shí)）			∮1/8〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞
Dimensions	Length mm		420	520	560	560	640	750	750	820	980
	Width mm		280	400	420	420	550	620	620	700	800
	Height mm		760	900	950	950	1030	1080	1080	1250	1550
Weight kg			45	84	113	135	210	275	295	325	450

Notes:

1. The technical parameters of colloied mill in the chart are standard configuration. Any specific requirements, please let us know.

2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.

3. The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
